Spring AI 源码分析

发表于

创建一个最简 Spring AI 项目，只引入 spring-ai-starter-mcp-server-webmvc 依赖，版本为 1.0.1，spring.ai.mcp.server.type 配置为 SYNC，然后定义一个 MCP 工具，准备工作就完成了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@Service
public class WeatherService {
    @Tool(description = "Get weather information by city name")
    public String getWeather(String cityName) {
        // Implementation
    }
}

@Configuration
public class McpServerConfiguration {
    @Bean
    public ToolCallbackProvider weatherTools(WeatherService weatherService) {
        return MethodToolCallbackProvider.builder().toolObjects(weatherService).build();
    }
}

后续分析只关注与工具调用相关的源码。

MCP 传输层

实现类为 WebMvcSseServerTransportProvider，在 McpWebMvcServerAutoConfiguration 自动配置，调用的构造器如下所示

1
2
3
4
5
6
7
8
9
10
11
public WebMvcSseServerTransportProvider(ObjectMapper objectMapper, String baseUrl, String messageEndpoint, String sseEndpoint) {
    // 省略了...
    this.objectMapper = objectMapper;
    this.baseUrl = baseUrl;
    this.messageEndpoint = messageEndpoint;
    this.sseEndpoint = sseEndpoint;
    this.routerFunction = RouterFunctions.route()
        .GET(this.sseEndpoint, this::handleSseConnection)
        .POST(this.messageEndpoint, this::handleMessage)
        .build();
}

messageEndpoint 默认为 /mcp/message，sseEndpoint 默认为 /sse，第 7~10 行构建这两个端点的处理器

sequenceDiagram
autonumber
BeanFactory->>McpWebMvcServerAutoConfiguration: webMvcSseServerTransportProvider(ObjectProvider<ObjectMapper>, McpServerProperties)
McpWebMvcServerAutoConfiguration->>WebMvcSseServerTransportProvider: new WebMvcSseServerTransportProvider(ObjectMapper, String, String, String)
WebMvcSseServerTransportProvider->>RouterFunctions: route()
RouterFunctions-->>WebMvcSseServerTransportProvider: RouterFunctionBuilder
WebMvcSseServerTransportProvider->>RouterFunctionBuilder: GET(String, HandlerFunction)
RouterFunctionBuilder->>RouterFunctions: route(RequestPredicate, HandlerFunction)
RouterFunctions-->>RouterFunctionBuilder: DefaultRouterFunction
RouterFunctionBuilder-->>WebMvcSseServerTransportProvider: RouterFunctionBuilder
WebMvcSseServerTransportProvider->>RouterFunctionBuilder: POST(String, HandlerFunction)
RouterFunctionBuilder->>RouterFunctions: route(RequestPredicate, HandlerFunction)
RouterFunctions-->>RouterFunctionBuilder: DefaultRouterFunction
RouterFunctionBuilder-->>WebMvcSseServerTransportProvider: RouterFunctionBuilder
WebMvcSseServerTransportProvider->>RouterFunctionBuilder: build()
RouterFunctionBuilder-->>WebMvcSseServerTransportProvider: BuiltRouterFunction
WebMvcSseServerTransportProvider-->>McpWebMvcServerAutoConfiguration: WebMvcSseServerTransportProvider
McpWebMvcServerAutoConfiguration-->>BeanFactory: WebMvcSseServerTransportProvider

第 3~14 步对应上面代码的第 7~10 行。

MCP 处理器映射

McpWebMvcServerAutoConfiguration 自动配置创建 RouterFunction，实际类型为 BuiltRouterFunction

sequenceDiagram
autonumber
BeanFactory->>McpWebMvcServerAutoConfiguration: mvcMcpRouterFunction(WebMvcSseServerTransportProvider)
McpWebMvcServerAutoConfiguration-->>BeanFactory: BuiltRouterFunction

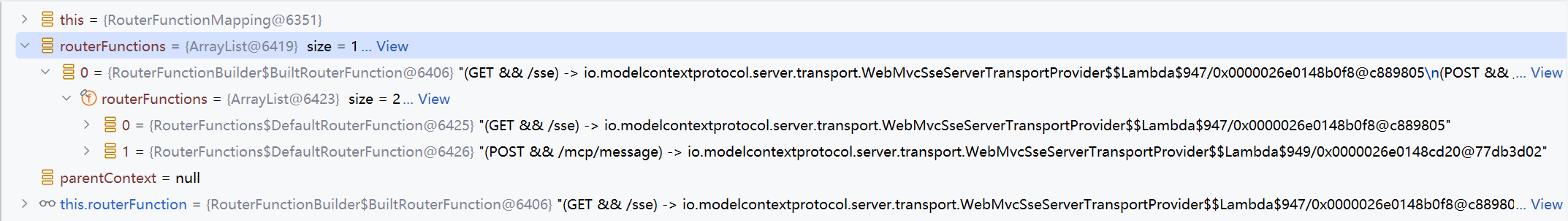

RouterFunctionMapping 在实例化后会从 BeanFactory 中获取所有的 RouterFunction 对象，其中就包括 BuiltRouterFunction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
private void initRouterFunctions() {
    List<RouterFunction<?>> routerFunctions = obtainApplicationContext()
            .getBeanProvider(RouterFunction.class)
            .orderedStream()
            .map(router -> (RouterFunction<?>) router)
            .collect(Collectors.toList());

    ApplicationContext parentContext = obtainApplicationContext().getParent();
    if (parentContext != null && !this.detectHandlerFunctionsInAncestorContexts) {
        parentContext.getBeanProvider(RouterFunction.class).stream().forEach(routerFunctions::remove);
    }

    this.routerFunction = routerFunctions.stream().reduce(RouterFunction::andOther).orElse(null);
    logRouterFunctions(routerFunctions);
}

MCP 服务器

实现类为 McpSyncServer，在 McpServerAutoConfiguration 自动配置

sequenceDiagram
autonumber
BeanFactory->>McpServerAutoConfiguration: mcpSyncServer(McpServerTransportProvider, ..., List<ToolCallbackProvider>)
McpServerAutoConfiguration->>McpServer: sync(McpServerTransportProvider)
McpServer-->>McpServerAutoConfiguration: SyncSpecification
rect rgb(191, 223, 255)
McpServerAutoConfiguration->>MethodToolCallbackProvider: getToolCallbacks()
MethodToolCallbackProvider->>MethodToolCallback.Builder: build()
MethodToolCallback.Builder->>MethodToolCallback: new MethodToolCallback(ToolDefinition, ToolMetadata, Method, Object, ToolCallResultConverter)
MethodToolCallback-->>MethodToolCallback.Builder: MethodToolCallback
MethodToolCallback.Builder-->>MethodToolCallbackProvider: MethodToolCallback
MethodToolCallbackProvider-->>McpServerAutoConfiguration: ToolCallback[]
end
rect rgb(200, 150, 255)
McpServerAutoConfiguration->>McpToolUtils: toSyncToolSpecification(ToolCallback, MimeType)
McpToolUtils-->>McpServerAutoConfiguration: McpServerFeatures.SyncToolSpecification
end
McpServerAutoConfiguration->>SyncSpecification: tools(List<McpServerFeatures.SyncToolSpecification>)
SyncSpecification-->>McpServerAutoConfiguration: SyncSpecification
McpServerAutoConfiguration->>SyncSpecification: build()
SyncSpecification->>McpServerFeatures.Sync: new McpServerFeatures.Sync(..., List<McpServerFeatures.SyncToolSpecification>, ...)
McpServerFeatures.Sync-->>SyncSpecification: McpServerFeatures.Sync
SyncSpecification->>McpServerFeatures.Async: fromSync(McpServerFeatures.Sync)
McpServerFeatures.Async-->>SyncSpecification: McpServerFeatures.Async
rect rgb(164, 198, 57)
SyncSpecification->>McpAsyncServer: new McpAsyncServer(McpServerTransportProvider, ..., McpServerFeatures.Async, ...)
McpAsyncServer->>McpAsyncServer: initializeRequestHandler()
McpAsyncServer->>WebMvcSseServerTransportProvider: setSessionFactory(McpServerSession.Factory)
WebMvcSseServerTransportProvider-->>McpAsyncServer: void
McpAsyncServer-->>SyncSpecification: McpAsyncServer
end
SyncSpecification->>McpSyncServer: new McpSyncServer(McpAsyncServer)
McpSyncServer-->>SyncSpecification: McpSyncServer
SyncSpecification-->>McpServerAutoConfiguration: McpSyncServer
McpServerAutoConfiguration-->>BeanFactory: McpSyncServer

McpToolUtils#toSyncToolSpecification 方法返回 McpServerFeatures.SyncToolSpecification，后者的第二个参数实现了工具调用逻辑：1、转换请求参数；2、调用工具回调方法；3、包装响应结果。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public static McpServerFeatures.SyncToolSpecification toSyncToolSpecification(ToolCallback toolCallback, MimeType mimeType) {
    var tool = new McpSchema.Tool(toolCallback.getToolDefinition().name(), toolCallback.getToolDefinition().description(), toolCallback.getToolDefinition().inputSchema());

    return new McpServerFeatures.SyncToolSpecification(tool, (exchange, request) -> {
        try {
            String callResult = toolCallback.call(ModelOptionsUtils.toJsonString(request), new ToolContext(Map.of(TOOL_CONTEXT_MCP_EXCHANGE_KEY, exchange)));
            if (mimeType != null && mimeType.toString().startsWith("image")) {
                return new McpSchema.CallToolResult(List.of(new McpSchema.ImageContent(List.of(Role.ASSISTANT), null, callResult, mimeType.toString())), false);
            }
            return new McpSchema.CallToolResult(List.of(new McpSchema.TextContent(callResult)), false);
        } catch (Exception e) {
            return new McpSchema.CallToolResult(List.of(new McpSchema.TextContent(e.getMessage())), true);
        }
    });
}

在 McpAsyncServer 构造器中会初始化请求处理器 McpServerSession.RequestHandler，如第 9~10 行所示，在上图使用 initializeRequestHandler 表示；同时为 WebMvcSseServerTransportProvider 设置会话工厂 McpServerSession.Factory，如第 13 行所示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
McpAsyncServer(McpServerTransportProvider mcpTransportProvider, ObjectMapper objectMapper, McpServerFeatures.Async features, Duration requestTimeout, McpUriTemplateManagerFactory uriTemplateManagerFactory) {
    this.mcpTransportProvider = mcpTransportProvider;
    // 省略了...
    this.tools.addAll(features.tools());
    // 省略了...
    Map<String, McpServerSession.RequestHandler<?>> requestHandlers = new HashMap<>();
    // 省略了...
    if (this.serverCapabilities.tools() != null) {
        requestHandlers.put(McpSchema.METHOD_TOOLS_LIST, toolsListRequestHandler());
        requestHandlers.put(McpSchema.METHOD_TOOLS_CALL, toolsCallRequestHandler());
    }
    // 省略了...
    mcpTransportProvider.setSessionFactory(transport -> new McpServerSession(UUID.randomUUID().toString(), requestTimeout, transport, this::asyncInitializeRequestHandler, Mono::empty, requestHandlers, notificationHandlers));
}

建立连接

sequenceDiagram
autonumber
actor Client
Client->>DispatcherServlet: /sse
rect rgb(191, 223, 255)
DispatcherServlet->>AbstractHandlerMapping: getHandler(HttpServletRequest)
AbstractHandlerMapping->>RouterFunctionMapping: getHandlerInternal(HttpServletRequest)
RouterFunctionMapping->>BuiltRouterFunction: route(ServerRequest)
BuiltRouterFunction->>DefaultRouterFunction: route(ServerRequest)
DefaultRouterFunction-->>BuiltRouterFunction: HandlerFunction<ServerResponse>
BuiltRouterFunction-->>RouterFunctionMapping: HandlerFunction<ServerResponse>
RouterFunctionMapping-->>AbstractHandlerMapping: HandlerFunction<ServerResponse>
AbstractHandlerMapping->>AbstractHandlerMapping: getHandlerExecutionChain(HandlerFunction, HttpServletRequest)
AbstractHandlerMapping-->>DispatcherServlet: HandlerExecutionChain
DispatcherServlet->>DispatcherServlet: getHandlerAdapter(HandlerFunction)
end
DispatcherServlet->>HandlerFunctionAdapter: handle(HttpServletRequest, HttpServletResponse, HandlerFunction)
rect rgb(200, 150, 255)
HandlerFunctionAdapter->>SseConnectionHandlerFunction: handle(ServerRequest), i.e. WebMvcSseServerTransportProvider#35;handleSseConnection(ServerRequest)
SseConnectionHandlerFunction->>SseConnectionHandlerFunction: createSessionId()
SseConnectionHandlerFunction->>ServerResponse: sse(Consumer<SseBuilder>, Duration)
ServerResponse->>SseServerResponse: create(Consumer<SseBuilder>, Duration)
SseServerResponse-->>ServerResponse: SseServerResponse
ServerResponse-->>SseConnectionHandlerFunction: SseServerResponse
SseConnectionHandlerFunction-->>HandlerFunctionAdapter: SseServerResponse
end
HandlerFunctionAdapter->>AbstractServerResponse: writeTo(HttpServletRequest, HttpServletResponse, Context)
rect rgb(164, 198, 57)
AbstractServerResponse->>SseServerResponse: writeToInternal(HttpServletRequest, HttpServletResponse, Context)
SseServerResponse->>DefaultSseBuilder: DefaultSseBuilder(HttpServletResponse, Context, DeferredResult<?>, HttpHeaders)
DefaultSseBuilder-->>SseServerResponse: DefaultSseBuilder
SseServerResponse->>SseConsumer: accept(DefaultSseBuilder), i.e. Consumer created in handleSseConnection
SseConsumer->>WebMvcMcpSessionTransport: WebMvcMcpSessionTransport(String, DefaultSseBuilder)
WebMvcMcpSessionTransport-->>SseConsumer: WebMvcMcpSessionTransport
SseConsumer->>McpServerSession.Factory: create(WebMvcMcpSessionTransport)
McpServerSession.Factory-->>SseConsumer: McpServerSession
SseConsumer->>WebMvcSseServerTransportProvider: setMcpServerSession() by sessionId
WebMvcSseServerTransportProvider-->>SseConsumer: void
SseConsumer->>DefaultSseBuilder: data(String), i.e. http://domain:port/mcp/message?sessionId=xxxxxxxx-xxxx-xxxx-xxxxxx-xxxxxxxxxx
DefaultSseBuilder-->>SseConsumer: void
SseConsumer-->>SseServerResponse: void
SseServerResponse-->>AbstractServerResponse: ModelAndView
end
AbstractServerResponse-->>HandlerFunctionAdapter: ModelAndView
HandlerFunctionAdapter-->>DispatcherServlet: ModelAndView
%%DispatcherServlet->>DispatcherServlet: render(ModelAndView, HttpServletRequest, HttpServletResponse)
DispatcherServlet-->>Client: /mcp/message?sessionId=xxxxxxxx-xxxx-xxxx-xxxxxx-xxxxxxxxxx
  1. SseConnectionHandlerFunction 是由 WebMvcSseServerTransportProvider#handleSseConnection 创建的函数对象；
  2. SseConsumer 是在 WebMvcSseServerTransportProvider#handleSseConnection 由 ServerResponse#sse 创建的函数对象。

MCP 客户端向 MCP 服务器发起 /sse 请求，DispatcherServlet 找到对应的端点处理器，即 WebMvcSseServerTransportProvider#handleSseConnection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
private ServerResponse handleSseConnection(ServerRequest request) {
    // 省略了...
    String sessionId = UUID.randomUUID().toString();
    // 省略了...
    try {
        return ServerResponse.sse(sseBuilder -> {
            // 省略了...
            WebMvcMcpSessionTransport sessionTransport = new WebMvcMcpSessionTransport(sessionId, sseBuilder);
            McpServerSession session = sessionFactory.create(sessionTransport);
            this.sessions.put(sessionId, session);

            try {
                sseBuilder.id(sessionId)
                    .event(ENDPOINT_EVENT_TYPE)
                    .data(this.baseUrl + this.messageEndpoint + "?sessionId=" + sessionId);
            } catch (Exception e) {
                // 省略了...
            }
        }, Duration.ZERO);
    } catch (Exception e) {
        // 省略了...
    }
}

这个处理器会：1、生成会话 ID sessionId；2、创建服务端会话 McpServerSession；3、返回消息端点 /mcp/message?sessionId=xxxxxxxx-xxxx-xxxx-xxxxxx-xxxxxxxxxx。

处理消息

MCP 客户端向 MCP 服务器发起 /mcp/message?sessionId=xxxxxxxx-xxxx-xxxx-xxxxxx-xxxxxxxxxx 请求，DispatcherServlet 找到对应的端点处理器，即 WebMvcSseServerTransportProvider#handleMessage，找的过程和 /sse 类似，这里直接看处理器的处理过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
private ServerResponse handleMessage(ServerRequest request) {
    // 省略了...
    String sessionId = request.param("sessionId").get();
    McpServerSession session = sessions.get(sessionId);
    // 省略了...
    try {
        String body = request.body(String.class);
        McpSchema.JSONRPCMessage message = McpSchema.deserializeJsonRpcMessage(objectMapper, body);

        // Process the message through the session's handle method
        session.handle(message).block(); // Block for WebMVC compatibility

        return ServerResponse.ok().build();
    } catch (IllegalArgumentException | IOException e) {
        // 省略了...
    } catch (Exception e) {
        // 省略了...
    }
}

这个处理器会：1、根据会话 ID sessionId 找到对应的 McpServerSession；2、解析 JSON-RPC 消息；3、处理 JSON-RPC 消息。如果是消息类型是 McpSchema.JSONRPCRequest 则调用 McpServerSession#handleIncomingRequest

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private Mono<McpSchema.JSONRPCResponse> handleIncomingRequest(McpSchema.JSONRPCRequest request) {
    return Mono.defer(() -> {
        Mono<?> resultMono;
        if (McpSchema.METHOD_INITIALIZE.equals(request.method())) {
            // 省略了...
        } else {
            var handler = this.requestHandlers.get(request.method());
            // 省略了...
            resultMono = this.exchangeSink.asMono().flatMap(exchange -> handler.handle(exchange, request.params()));
        }
        return resultMono
            .map(result -> new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), result, null))
            .onErrorResume(error -> Mono.just(new McpSchema.JSONRPCResponse(McpSchema.JSONRPC_VERSION, request.id(), null, new McpSchema.JSONRPCResponse.JSONRPCError(McpSchema.ErrorCodes.INTERNAL_ERROR, error.getMessage(), null))));
        // TODO: add error message through the data field
    });
}

第 7 行根据方法名找到对应的请求处理器，这些处理器在 McpAsyncServer 构造器中创建；第 9 行执行请求处理器。工具调用请求处理器为 McpAsyncServer#toolsCallRequestHandler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
private McpServerSession.RequestHandler<CallToolResult> toolsCallRequestHandler() {
    return (exchange, params) -> {
        McpSchema.CallToolRequest callToolRequest = objectMapper.convertValue(params, new TypeReference<McpSchema.CallToolRequest>() {});

        Optional<McpServerFeatures.AsyncToolSpecification> toolSpecification = this.tools.stream()
            .filter(tr -> callToolRequest.name().equals(tr.tool().name()))
            .findAny();

        if (toolSpecification.isEmpty()) {
            return Mono.error(new McpError("Tool not found: " + callToolRequest.name()));
        }

        return toolSpecification.map(tool -> tool.call().apply(exchange, callToolRequest.arguments()))
            .orElse(Mono.error(new McpError("Tool not found: " + callToolRequest.name())));
    };
}

工具调用请求处理器会：1、解析请求参数；2、根据工具名称找到工具规格；3、调用工具，即 MethodToolCallback#call。

sequenceDiagram
autonumber
rect rgb(191, 223, 255)
MessageHandlerFunction->>WebMvcSseServerTransportProvider: Get McpServerSession by sessionId
WebMvcSseServerTransportProvider-->>MessageHandlerFunction: McpServerSession
end
MessageHandlerFunction->>McpSchema: deserializeJsonRpcMessage(ObjectMapper, String)
McpSchema-->>MessageHandlerFunction: McpSchema.JSONRPCMessage
MessageHandlerFunction->>McpServerSession: handle(McpSchema.JSONRPCMessage)
rect rgb(200, 150, 255)
McpServerSession->>McpServerSession: Get RequestHandler by method e.g. tools/call
end
McpServerSession->>ToolsCallRequestHandler: handle(McpAsyncServerExchange, Object)
ToolsCallRequestHandler->>ObjectMapper: convertValue(Map<String, Object>, TypeReference<McpSchema.CallToolRequest>)
ObjectMapper-->>ToolsCallRequestHandler: McpSchema.CallToolRequest
rect rgb(200, 150, 255)
ToolsCallRequestHandler->>ToolsCallRequestHandler: Get AsyncToolSpecification by tool name e.g. getWeather
end
ToolsCallRequestHandler->>McpServerFeatures.AsyncToolSpecification: call()
McpServerFeatures.AsyncToolSpecification-->>ToolsCallRequestHandler: ToolCallbackFunction
ToolsCallRequestHandler->>ToolCallbackFunction: apply(McpSyncServerExchange, Map<String, Object>)
rect rgb(164, 198, 57)
ToolCallbackFunction->>MethodToolCallback: call(String, ToolContext)
MethodToolCallback-->>ToolCallbackFunction: String
end
ToolCallbackFunction->>McpSchema.TextContent: new McpSchema.TextContent(String)
McpSchema.TextContent-->>ToolCallbackFunction:McpSchema.TextContent
ToolCallbackFunction->>McpSchema.CallToolResult: new McpSchema.CallToolResult(List<Content>, Boolean)
McpSchema.CallToolResult-->>ToolCallbackFunction: McpSchema.CallToolResult
ToolCallbackFunction-->>ToolsCallRequestHandler: McpSchema.CallToolResult
ToolsCallRequestHandler-->>McpServerSession: McpSchema.CallToolResult
McpServerSession->>McpSchema.JSONRPCResponse: new McpSchema.JSONRPCResponse(String, Object, Object, JSONRPCError)
McpSchema.JSONRPCResponse-->>McpServerSession: McpSchema.JSONRPCResponse
McpServerSession-->>MessageHandlerFunction: McpSchema.JSONRPCResponse
MessageHandlerFunction->>WebMvcMcpSessionTransport: sendMessage(McpSchema.JSONRPCMessage)
WebMvcMcpSessionTransport-->>MessageHandlerFunction: void
  1. MessageHandlerFunction 是由 WebMvcSseServerTransportProvider#handleMessage 创建的函数对象；
  2. ToolsCallRequestHandler 是由 McpAsyncServer#toolsCallRequestHandler 创建的函数对象；
  3. ToolCallbackFunction 是在 McpToolUtils#toSyncToolSpecification 创建的函数对象。

Spring AI Alibaba 源码分析

MCP 网关工具初始化

sequenceDiagram
autonumber
McpGatewayToolCallbackProvider->>NacosMcpGatewayToolsInitializer: initializeTools()
NacosMcpGatewayToolsInitializer->>NacosMcpGatewayProperties: getServiceNames()
NacosMcpGatewayProperties-->>NacosMcpGatewayToolsInitializer: List<String>
NacosMcpGatewayToolsInitializer->>NacosMcpOperationService: getServerDetail()
NacosMcpOperationService-->>NacosMcpGatewayToolsInitializer: McpServerDetailInfo
NacosMcpGatewayToolsInitializer->>NacosMcpGatewayToolsInitializer: parseToolsFromMcpServerDetailInfo
NacosMcpGatewayToolsInitializer-->>McpGatewayToolCallbackProvider: List<ToolCallback>

MCP 网关工具更新

sequenceDiagram
autonumber
ScheduledExecutorService->>NacosMcpGatewayToolsWatcher: watch()
NacosMcpGatewayToolsWatcher->>NacosMcpGatewayProperties: getServiceNames()
NacosMcpGatewayProperties-->>NacosMcpGatewayToolsWatcher: List<String>
NacosMcpGatewayToolsWatcher->>NacosMcpOperationService: getServerDetail(String)
NacosMcpOperationService-->>NacosMcpGatewayToolsWatcher: McpServerDetailInfo
NacosMcpGatewayToolsWatcher->>NacosMcpGatewayToolsWatcher: compareToolsChange
NacosMcpGatewayToolsWatcher->>NacosMcpAsyncGatewayToolsProvider: addTool(McpGatewayToolDefinition)
NacosMcpAsyncGatewayToolsProvider->>NacosMcpAsyncGatewayToolsProvider:removeTool(String)
NacosMcpAsyncGatewayToolsProvider->>McpAsyncServer: addTool(McpServerFeatures.AsyncToolSpecification)
McpAsyncServer-->>NacosMcpAsyncGatewayToolsProvider: Mono<Void>
NacosMcpAsyncGatewayToolsProvider-->>NacosMcpGatewayToolsWatcher: void
NacosMcpGatewayToolsWatcher->>NacosMcpAsyncGatewayToolsProvider: removeTool(String)
NacosMcpAsyncGatewayToolsProvider->>McpAsyncServer: removeTool(String)
McpAsyncServer-->>NacosMcpAsyncGatewayToolsProvider: Mono<Void>
NacosMcpAsyncGatewayToolsProvider-->>NacosMcpGatewayToolsWatcher: void
NacosMcpGatewayToolsWatcher->>NacosMcpGatewayToolsWatcher: cleanupStaleServices(Set<String>)
NacosMcpGatewayToolsWatcher-->>ScheduledExecutorService: void
